TLM SERIES-Screwless Type

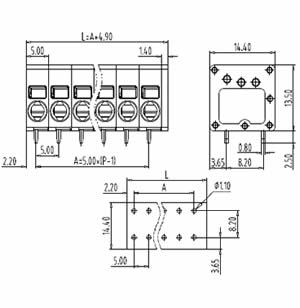

TLM-212R

Pitch(间距) 5.00mm
Approval(认证)
Rated voltage(电压) 300V 320V
rated current(电流) 20A 24A
wire range(线径) 24-12AWG 0.2-2.5mm² sol/str 4.0mm² sol
PCB hole Dia(PCB直径) Φ1.1mm
Screw (螺丝)

Housing Material(本质材料)

Poles(级数) Model(型号)
02 TLM-212R-02P
.. ..
24 TLM-212R-24P

PS: For reference only,Prevail Specific data by Specification company provided
