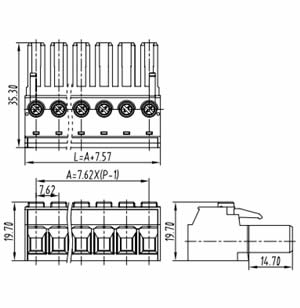

TLP SERIES-Plugs for pluggable terminal blocks

TLPS-501

Pitch(间距) 7.62mm
Approval(认证)
Rated voltage(电压) 600V 1000V
rated current(电流) 41A 41A
wire range(线径) 8-24AWG 0.2-6.0mm²
PCB hole Dia(PCB直径)
Screw (螺丝) M3

Housing Material(本质材料)

Poles(级数) Model(型号)
02 TLPS-501-02P
.. ..
12 TLPS-501-12P

PS: For reference only,Prevail Specific data by Specification company provided
