TL SERIES-Wire Protector

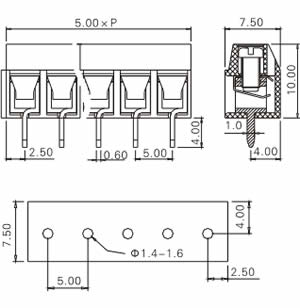

TL203V

Pitch(间距) 5.00mm
Approval(认证)
Rated voltage(电压) 300V 250V 450V
rated current(电流) 16A 16A
wire range(线径) 26-12AWG 0.5-2.5mm² 2.50mm²
PCB hole Dia(PCB直径) Φ1.4-1.6mm
Screw (螺丝) M2.5

Housing Material(本质材料)

Poles(级数) Model(型号)
02 TL203V-02P
.. ..
24 TL203V-24P

PS: For reference only,Prevail Specific data by Specification company provided
