TL SERIES-Raising Clamp

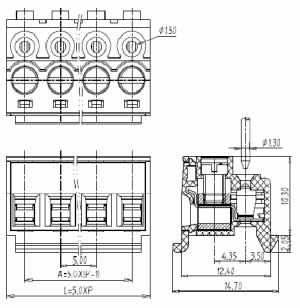

TL219

Pitch(间距) 5.00mm
Approval(认证)
Rated voltage(电压) 300V 320V
rated current(电流) 12A 12A
wire range(线径) 28-14AWG 0.2-1.5mm² sol/str 2.5mm² sol
PCB hole Dia(PCB直径)
Screw (螺丝) M3.0

Housing Material(本质材料)

Poles(级数) Model(型号)
02 TL219-02P
.. ..
25 TL219-25P

PS: For reference only,Prevail Specific data by Specification company provided
