TLB SERIES-Terminal Strip

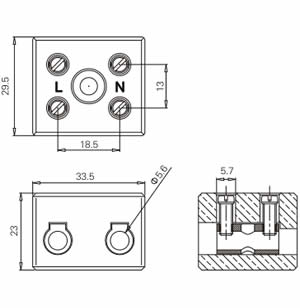

TLB-900-2P

Pitch(间距) 18.50mm
Approval(认证)
Rated voltage(电压) 600V 750V
rated current(电流) 50A 57A
wire range(线径) 18-08AWG 2.5-10.0mm² sol/str 16mm² sol max
PCB hole Dia(PCB直径)
Screw (螺丝) M4.0

Housing Material(本质材料)

Poles(级数) Model(型号)
02 TLB-900-2P

PS: For reference only,Prevail Specific data by Specification company provided
